Joomla Video Consultation Component

VideoWhisper > Video Consultation > Joomla 3.x -1.5 & JomSocial
Joomla 3.xJoomla 2.5Joomla 1.7Joomla 1.6Joomla 1.5 Joomla Module Joomla Component JomSocial
Joomla Video Consultation Component
  • Collaborative moderated live video conferencing
  • Slideshow, file sharing, user interactions
  • Webcam recorded slides & annotations
  • Document and Media Slide Import
    (PPT, DOC, PDF, MP4, MP3, MPEG...) (v3+)
  • Animated Slide Annotations (v3+)
    Whiteboard / Comments / AV Recordings
  • Users can create and manage rooms
  • Admins can also manage room setup templates
  • Configure access, permissions and settings per room
  • Show rooms list and management links with module
  • Limit usage time / bandwidth per room & user
  • Room usage statistics: user session time and duration (v3+)
  • AJAX online status embed code
  • Manage logs and shared files
  • Supports JomSocial groups for room access and permissions
  • Supports Joomla Updater

Video Consultation component and module for Joomla allows easy setup of the VideoWhisper Video Consultation software, backend configuration and creation of video presentation rooms from backend and frontend.

Video Consultation Component and Module for Joomla

This provides live web based video conferencing, chat, live shared slideshows and file exchange features with advanced realtime moderation designed for video seminars, internet based live trainings and e-learning, online collaboration.

You can test it on these live sites:

Register an account to test it with high quality settings, create your own rooms or test as visitor with normal quality.

There different extension downloads for Joomla 3.x and 2.5.x or older. VideoWhisper also provides older extensions for older Joomla 1.5.x but does NOT recommend, support or plan to provide updates for that version. VideoWhisper recommends using latest Joomla 3.x : Latest application versions, most features and future updates are planned only for Joomla 3.x .

Joomla is an award-winning member and content management system (CMS), which enables you to build web sites and powerful online applications. Joomla is free and open source, easy to install and supports many ready made add ons to extend its functionality (e-commerce, e-learning, inventory, reporting, bridges to other applications).

Also supports JomSocial groups if component is available.

Joomla integration features:
Backend Features: Setup parameters, create and manage all rooms (including permissions) and room templates.
Front End Features: List latest public rooms & user's rooms, create room (from template), manage settings for own rooms.

Installation Instructions

Before installing, make sure your hosting environment meets all requirements.

  1. If you're not hosting RTMP with us go to RTMP Application Setup for installation details.
  2. Install the component and module zips from Extensions > Install/Uninstall in joomla administrator interface.
  3. From joomla administrator interface fill rtmp path in component parameters from Components > VideoWhisper.com Video Consultation. This usually has this form: rtmp://your-rtmp-host.com/videowhisper . We send you this setting if you host with us.
  4. Enable the module from Extensions > Modules (joomla administrator interface) if you want to list public video consultation rooms on your site.
    Module also shows interface to allow frontend users to create and manage rooms.

    In latest Joomla you should configure these to show module on standard templates:
    Status: Published
    Position: position-7 (usually left column)
    Module Assignment : On all Pages
    then [Save&Close].


  • You can install and use multiple VideoWhisper communication components on same website.
  • Set Error Reporting = Simple from Global Configuration > Server as notices and warnings can break parameters.
  • Disable/configure any SEO/ad injection components to not alter these components and modules. Changing links or adding extra content to component output will usually cause flash application parameter errors.
  • Joomla menus for application are not available because room links are dynamic (based on room name). Room links must be used and displayed with the module or exact static links listed for each room in the component.
  • When in Maitenance Mode (Site Offline), applications will NOT be able to connect to web server.
Component Snapshots

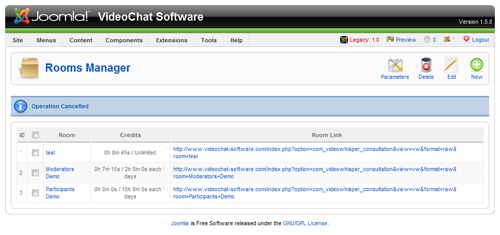

Joomla Video Consultation Rooms List

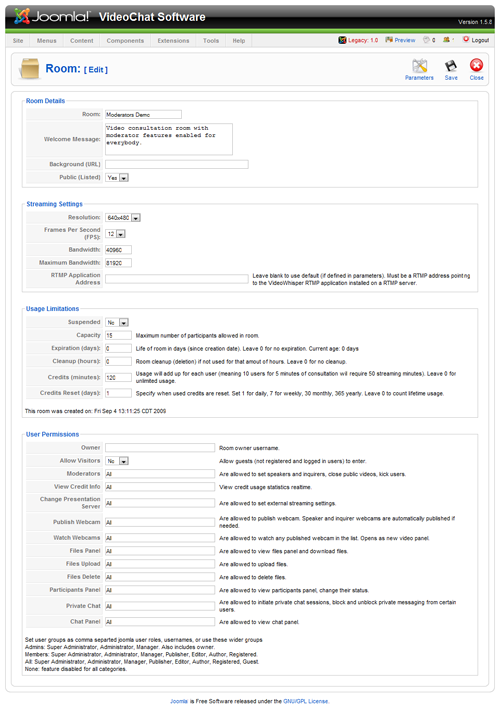

Joomla Video Consultation Room Edit

Component License

This joomla integration component is provided with full php source code under GPL. This basically means you can use, tweak, distribute the component php files as you wish. Contact us if you have interesting tweaks for this or derived components and want to share these with the world.

Component Customizations
  • Edit all graphics (including logo, panel skins, buttons) in components/com_videowhisper_consultation/templates/consultation .
  • Edit chat page in components/com_videowhisper_consultation/views/vw/tmpl/default.php .
  • Edit logout page in components/com_videowhisper_consultation/views/logout/tmpl/default.php .
Details, Forums, Downloads
Component Features

VideoWhisper Video Consultation component for Joomla provides an advanced interface for creating and managing consultation rooms.

Rooms can be created, edited, deleted with multiple options, including resolution and framerate, bandwidth, usage limitations like credits that can be assigned for custom durations (daily, monthly).
This could be used for setting up paid services (offer video consultation rooms to trainers, doctors, lawyers, financial advisers, teachers, communities).

Includes JomSocial groups support for setting user permissions.

Frontend Features
- Create Room (select from templates defined in backend)
- Manage Rooms
For each room:
- Edit room settings and permissions
- Delete Files: delete all room files (from uploads/room folder), displays total size of files (ex: Delete Files (0.5Mb) )
- Browse Logs: a view that lists all logs files and allows opening, deleting each one
- Share: access links, ajax JavaScript that shows when a moderator is online and room access link
- Statistics: View users that entered room, date and duration of their sessions. (for Joomla 3+ version)

Here is a list of settings that can be configured for each room:

Room Details

  • Room:
  • Welcome Message:
  • Background (URL)
  • Public (Listed)
  • room snapshot field where user can fill an image url
  • Joomla category

Streaming Settings

  • Resolution:
  • Frames Per Second (FPS):
  • Bandwidth:
  • Maximum Bandwidth:
  • RTMP Application Address Leave blank to use default (if defined in parameters). Must be a RTMP address pointing to the VideoWhisper RTMP application installed on a RTMP server.

Usage Limitations

  • Suspended
  • Capacity Maximum number of participants allowed in room.
  • Expiration (days): Life of room in days (since creation date). Leave 0 for no expiration.
  • Cleanup (hours): Room cleanup (deletion) if not used for that amount of hours. Leave 0 for no cleanup.
  • Credits (minutes): Usage will add up for each user (meaning 10 users for 5 minutes of consultation will require 50 streaming minutes). Leave 0 for unlimited usage.
  • Credits Reset (days): Specify when used credits are reset. Set 1 for daily, 7 for weekly, 30 monthly, 365 yearly. Leave 0 to count lifetime usage.

User Permissions

  • Owner Room owner username.
  • Allow Visitors Allow guests (not registered and logged in users) to enter.
  • Moderators Are allowed to set speakers and inquirers, close public videos, kick users, change background (from uploaded pictures).
  • View Credit Info View credit usage statistics realtime.
  • Change Presentation Server Are allowed to set external streaming settings.
  • Publish Webcam Are allowed to publish webcam. Speaker and inquirer webcams are automatically published if needed.
  • Watch Webcams Are allowed to watch any published webcam in the list. Opens as new video panel.
  • Files Panel Are allowed to view files panel and download files.
  • Files Upload Are allowed to upload files.
  • Files Delete Are allowed to delete files.
  • Participants Panel Are allowed to view participants panel, change their status.
  • Private Chat Are allowed to initiate private chat sessions, block and unblock private messaging from certain users.
  • Chat Panel Are allowed to view chat panel.

    Set user groups as comma separated joomla user roles, usernames, or use these wider groups:
    Admins: Super Administrator, Administrator, Manager. Also includes owner.
    Members: Super Administrator, Administrator, Manager, Publisher, Editor, Author, Registered.
    All: Super Administrator, Administrator, Manager, Publisher, Editor, Author, Registered, Guest.
    None: feature disabled for all categories.


Global Limitations Per User

When defining template, from component backend, webmaster can also specify how many rooms of that type can users create and total credits that can be used in all these rooms per month (0 = unlimited)

Credit Modes
Room usage can be limited to a number of credits per time interval (ex. month). Credits can be consumed as time or bandwidth depending on room setting: Credits Mode: Time / Bandwidth (2 options to calculate credits in: Minutes / Mb)

Time Credits Mode
- for each user consumes 1 credit per minute multiplied by streams per user multiplier

Bandwidth credits mode
- displays (in admin room list) bandwidth per minute per stream for each room based on streaming settings (maxCamBandwidth in bytes/s) + sound settings http://askmeflash.com/article/2/speex-vs-nellymoser (kbps, divide by 8 to get kb/s)
- room setting: Maximum Bandwidth Capacity: 10 (Mbps, divide by 8 to obtain Mb/s)
+ Calculates and displays maximum room capacity based on bandwidth. Each user will require a multiplier of stream bandwidth configurable in component settings: Streams per user bandwidht multiplier.
Leaving 0 will user default for that application type. For Consultation will calculate as 1 (main) + number of custom public video panels for each room .
+ At runtime min(room capacity, bandwidth room capacity) is used as room_limit
